Flow formed wheels: the short answer

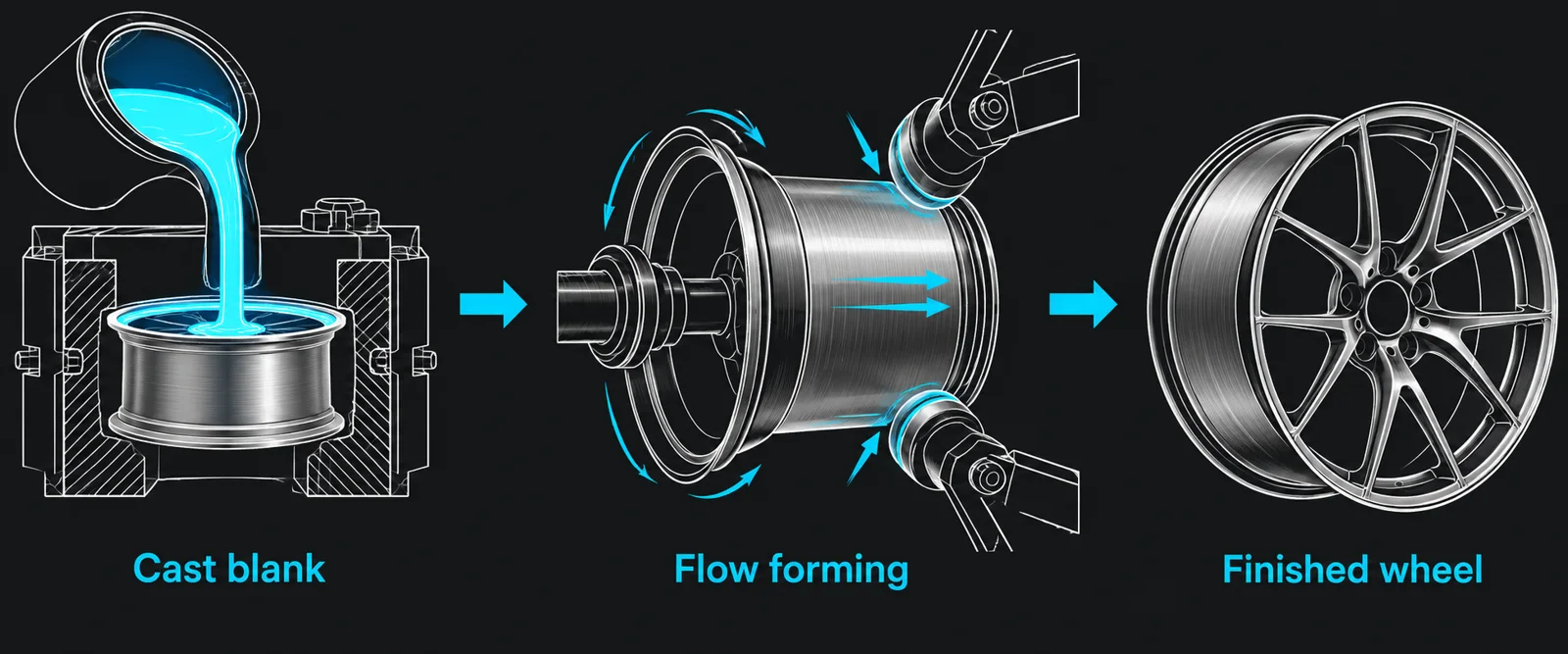

Flow formed wheels start as a cast aluminum blank. After casting, the barrel is heated and spun while rollers press and stretch the rim wall. That process work-hardens and thins the barrel, which improves barrel strength-to-weight compared with a plain cast wheel of similar design. The face is usually still a casting; only the barrel is flow formed.
Marketing often calls the same process “flow forged,” “rotary forged” or similar. Those names are not the same as a true forged wheel made from a solid billet under a forging press. For the head-to-head, use our forged vs flow formed and three-way comparison guides.
| Cast | Flow formed | Forged | |
|---|---|---|---|
| Starting form | Molten metal in a mold | Cast blank, then spun barrel | Solid billet pressed in a die |
| Barrel | As cast | Rolled / stretched and work-hardened | Machined from forging |
| Face / spokes | Cast | Usually still cast | Forged and CNC machined |
| Custom width/offset | Catalog sizes | Mostly catalog sizes | Fully custom when made to order |
| Typical role | Value / OEM-style | Mid performance / lighter barrel | Custom / high performance |
What are flow formed wheels good for?
Flow formed alloy wheels sit between cast and forged for many buyers. You often get a lighter, stronger barrel than a simple cast wheel at a lower cost tier than a custom forged set. They suit daily drivers and mild performance builds that pick from a catalog size list.
Limits show up when you need a one-off width, offset, center bore or spoke clearance. Catalog flow formed lines stock common fitments; they are not drawn around one car the way a custom forged monoblock is. If your brief is odd sizes, big brakes or magnesium, forged custom is usually the clearer path.
How to read “flow forged” and “rotary forged”
Those phrases usually mean flow forming, not billet forging. A true forged wheel starts as a solid blank pressed under very high force, then CNC machined. Flow forming starts as a casting and only forms the barrel. Ask the seller: was the blank cast or forged, and which parts were flow formed?
Our how forged wheels are made guide walks through the billet path. Forged vs cast covers the other end of the spectrum.
Flow formed wheels and EVs / heavy cars
Heavier vehicles need the load rating first, not the process buzzword. Flow formed barrels help weight and stiffness versus a soft cast barrel, but they do not automatically meet a high load requirement. Check the stamped or published load rating against your corner weight and intended use.
If you need magnesium, odd offsets or a one-off center bore for an EV brake package, a custom forged set is usually the honest path rather than forcing a catalog flow formed size.
Buying checklist (any process)
- Bolt pattern (PCD) and seat type — see how to measure bolt pattern
- Offset and width — use the offset calculator
- Center bore and hub centering — hub-centric vs lug-centric
- Brake clearance for your calipers — BBK clearance
- Load rating for your vehicle weight, not just the look
Marketing names such as “rotary forged” and “flow forged” usually point to this process — details in rotary forged wheels.
Flow formed wheels FAQ
What are flow formed wheels?
Cast wheels whose barrels are spun and rolled after casting to thin and work-harden the rim wall.
Is flow formed the same as forged?
No. Flow forming reshapes a cast barrel; forging starts from a solid billet pressed in a die.
Are flow formed alloy wheels strong enough for track days?
Many are used in performance street and light track use, but you must check the load rating and the maker’s guidance for your car and use case.
Why do listings say rotary forged?
It is usually a marketing name for flow forming. Ask what process was actually used.
Does VEXORA sell flow formed wheels?
No. VEXORA makes fully custom forged aluminum and magnesium wheels. Every VEXORA set is made to order, and custom orders start from a single pair. MOQ: 1 pair (2 wheels). Production typically takes approximately 20 days once the specification, drawings and finish are approved, confirmed per project. Shipping time varies by destination country. Where DDP (Delivered Duty Paid) is available for your country, orders ship DDP: import duties and taxes are handled and the wheels are delivered to your door.
When should I choose forged instead?
When you need a custom width, offset, center bore, brake package clearance, magnesium, or a true forged structure — start at custom forged wheels.
